PTH SERİSİ, ÇİFT TESİRLİ,
KAZIK TESTİ HİDROLİK KRİKOLARI
KAZIK TESTİ HİDROLİK KRİKOLARI
- Kazık test uygulamalan için
- 300 – 1500 ton, 11 farklı kapasite aralığı
- 150 – 200 – 250 mm strokÇift tesirli , hidrolik dönüş
- Silindir kovanı alaşımlı çelikten imal edilmiş ve iç yüzeyi honlanmıştır.
- Rod, alaşımlı çelikten imal edilmiş ve sertleştirilmiştir.
- Rod yüzeyi 100-120 mikron kalınlığında sert krom kaplanmıştır.
- Piston ve boğaz kapağında bronz yataklama yapılmıştır.
- Sızdırmazlık elemanlan 700 bar basınçta emniyetli ve uzun ömürlü çalışabilecek özelliktedir.
- Silindir dönüş hattında, basınç yükselmelerinde emniyet sağlayan basınç tahliye valfi vardır.
- Silindirlerde opsiyonel olarak 4 derece oynar başlık vardır.
- Silindirler, 800 bar basınçta ve tam strokta test edilmektedir.
- Silindirler fiili olarak kalibre edilmekte ve belgelendirilmektedir.
PTH SERİSİ TEKNİK DETAYLAR

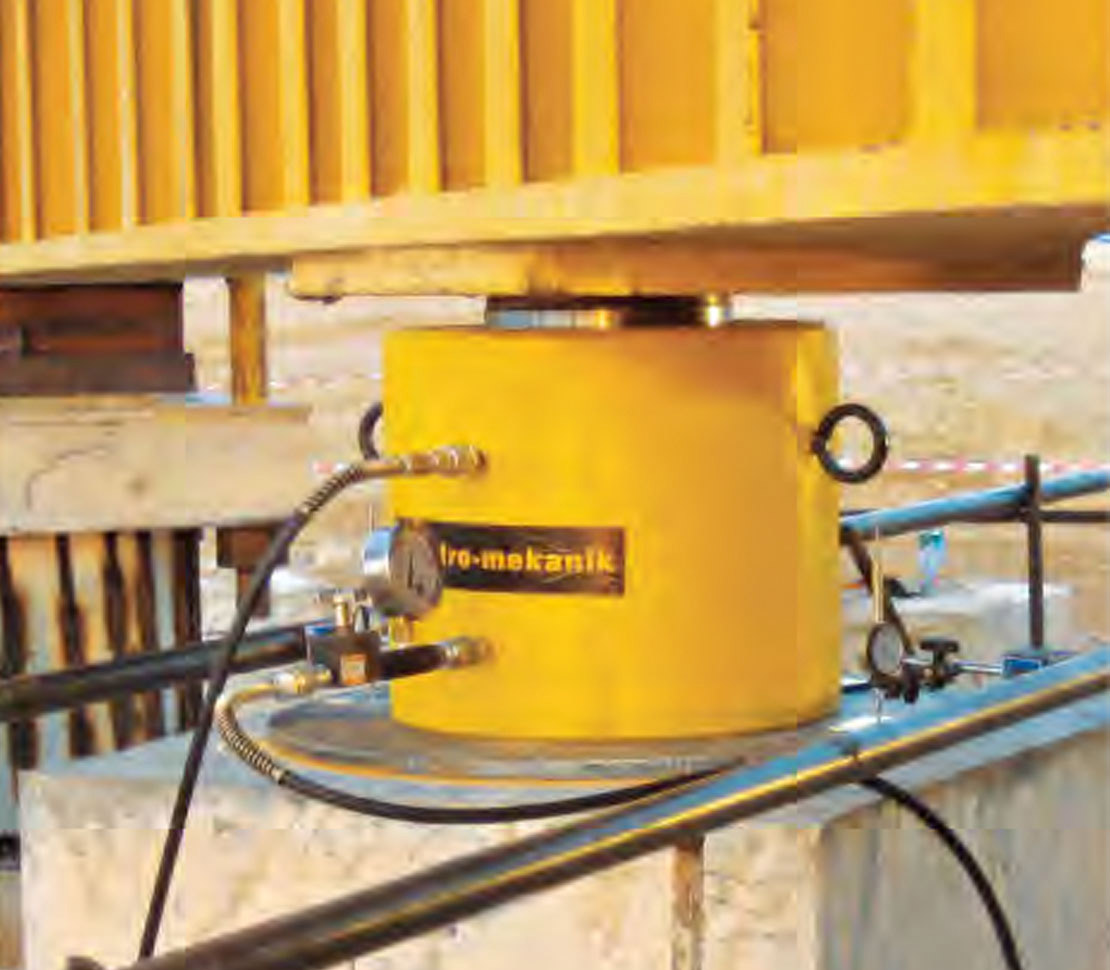

PTH SERİSİ UYGULAMALAR
PTH SERİSİ DATA SHEET
| Tür | Data Sheet Adı | Dosya Boyutu |
|---|---|---|
 |
PTH-30015-300-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-30015-300-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 746.52 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 746.52 KB |
|
PTH-30020-300-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-30020-300-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 764.51 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 764.51 KB |
|
PTH-30025-300-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-30025-300-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 772.24 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 772.24 KB |
|
PTH-40015-400-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-40015-400-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 778.83 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 778.83 KB |
|
PTH-40020-400-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-40020-400-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 786.83 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 786.83 KB |
|
PTH-40025-400-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-40025-400-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 793.37 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 793.37 KB |
|
PTH-50015-500-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-50015-500-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 805.85 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 805.85 KB |
|
PTH-50020-500-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-50020-500-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 764.5 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 764.5 KB |
|
PTH-50025-500-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-50025-500-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 778 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 778 KB |
|
PTH-60015-600-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-60015-600-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 781.09 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 781.09 KB |
|
PTH-60020-600-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-60020-600-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 785.92 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 785.92 KB |
|
PTH-60025-600-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-60025-600-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 793.7 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 793.7 KB |
|
PTH-70015-700-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-70015-700-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 790.18 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 790.18 KB |
|
PTH-70020-700-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-70020-700-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 779.71 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 779.71 KB |
|
PTH-70025-700-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-70025-700-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 779.72 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 779.72 KB |
|
PTH-80015-800-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-80015-800-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 809.35 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 809.35 KB |
|
PTH-80020-800-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-80020-800-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 787.97 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 787.97 KB |
|
PTH-80025-800-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-80025-800-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 810.26 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 810.26 KB |
|
PTH-90015-900-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-90015-900-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 801.99 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 801.99 KB |
|
PTH-90020-900-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-90020-900-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 799.63 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 799.63 KB |
|
PTH-90025-900-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-90025-900-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 787.16 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 787.16 KB |
|
PTH-100015-1000-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-100015-1000-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 788.44 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 788.44 KB |
|
PTH-100020-1000-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-100020-1000-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 795.97 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 795.97 KB |
|
PTH-100025-1000-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-100025-1000-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 814.8 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 814.8 KB |
|
PTH-110015-1100-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-110015-1100-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 783.13 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 783.13 KB |
|
PTH-110020-1100-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-110020-1100-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 787.21 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 787.21 KB |
|
PTH-110025-1100-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-110025-1100-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 797.09 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 797.09 KB |
|
PTH-125015-1250-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-125015-1250-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 784.88 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 784.88 KB |
|
PTH-125020-1250-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-125020-1250-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 795.2 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 795.2 KB |
|
PTH-125025-1250-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-125025-1250-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 804.89 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 804.89 KB |
|
PTH-150015-1500-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-150015-1500-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 783.9 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 783.9 KB |
|
PTH-150020-1500-ton-Pile-Test-Jack-Data-Sheet.pdf
PTH-150020 -1500-ton-Pile-Test-Jack-Data-Sheet.pdf application/pdfPTH-150020 -1500-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 795.36 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 795.36 KB |
|
PTH-150025-1500-ton-Pile-Test-Jack-Data-Sheet.pdf
application/pdfPTH-150025-1500-ton-Pile-Test-Jack-Data-Sheet.pdf Dökümanı Aç İndir Linki Kopyala 801.22 KB 2026-04-07 Nisan 7, 2026 2026-04-01 Nisan 1, 2026 | 801.22 KB |
